Especificaciones Técnicas

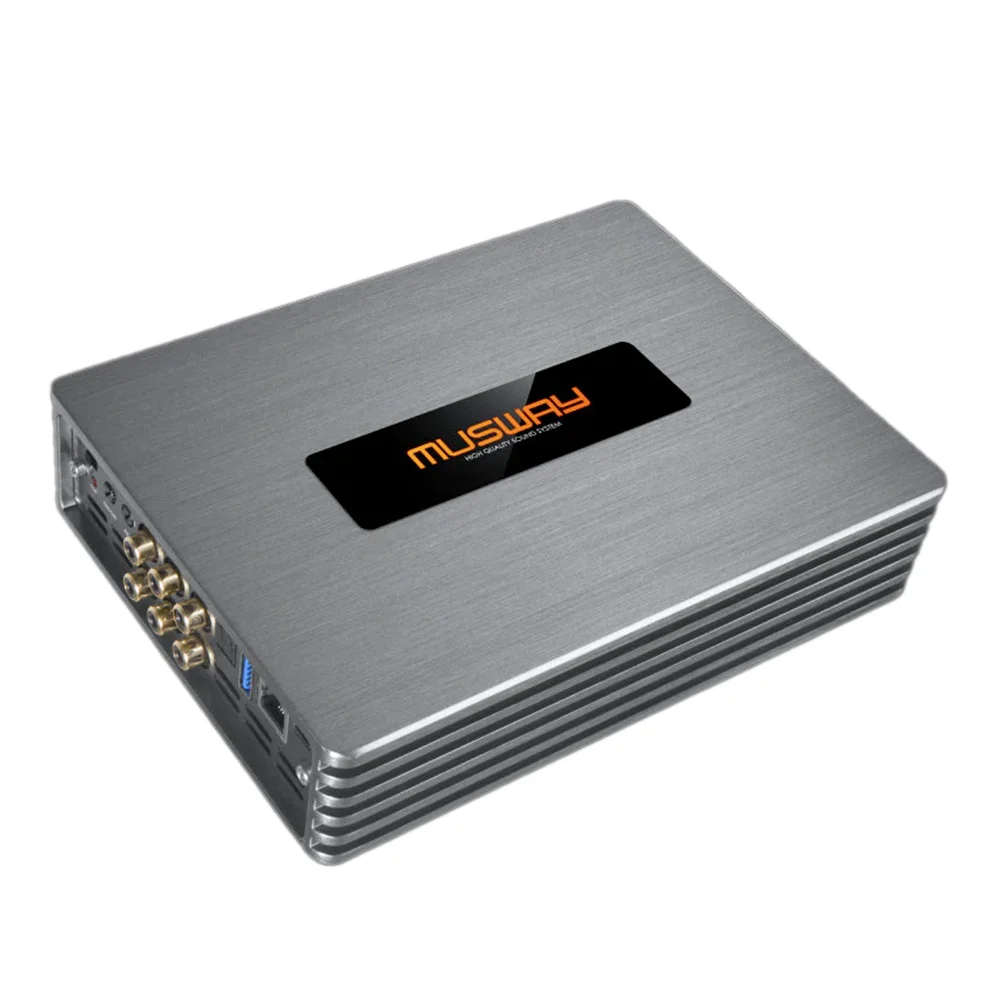

4-Channel Full Range Class D Amplifier with 8-Channel DSP – 512k
Power Output:
• 4 x 100 W @4
• 4 × 135 W @2Ω
• Bridged 2 x 270 W @4
Dimensions: 8.66″(W) × 1.73″(H) × 5.9″(L) (150 x 44 x 200 mm)
Inputs: High-Level 6 (10-30 V RMS with EPS®)
Low-Level RCA 6 (2-6 V RMS)
AUX RCA 2
Optical Stereo PCM 1
• Frequency Response: 10 Hz-22 kHz (-3 dB)
• THD: 0.05% @ 4 ohms
• S/N Ratio: 95 Db A
• Damping Factor: >70 (1 kHz, 2 V RMS, 4 2)
Min Load Impedance: 2 (per channel). 4 (bridged)
