Especificaciones Técnicas

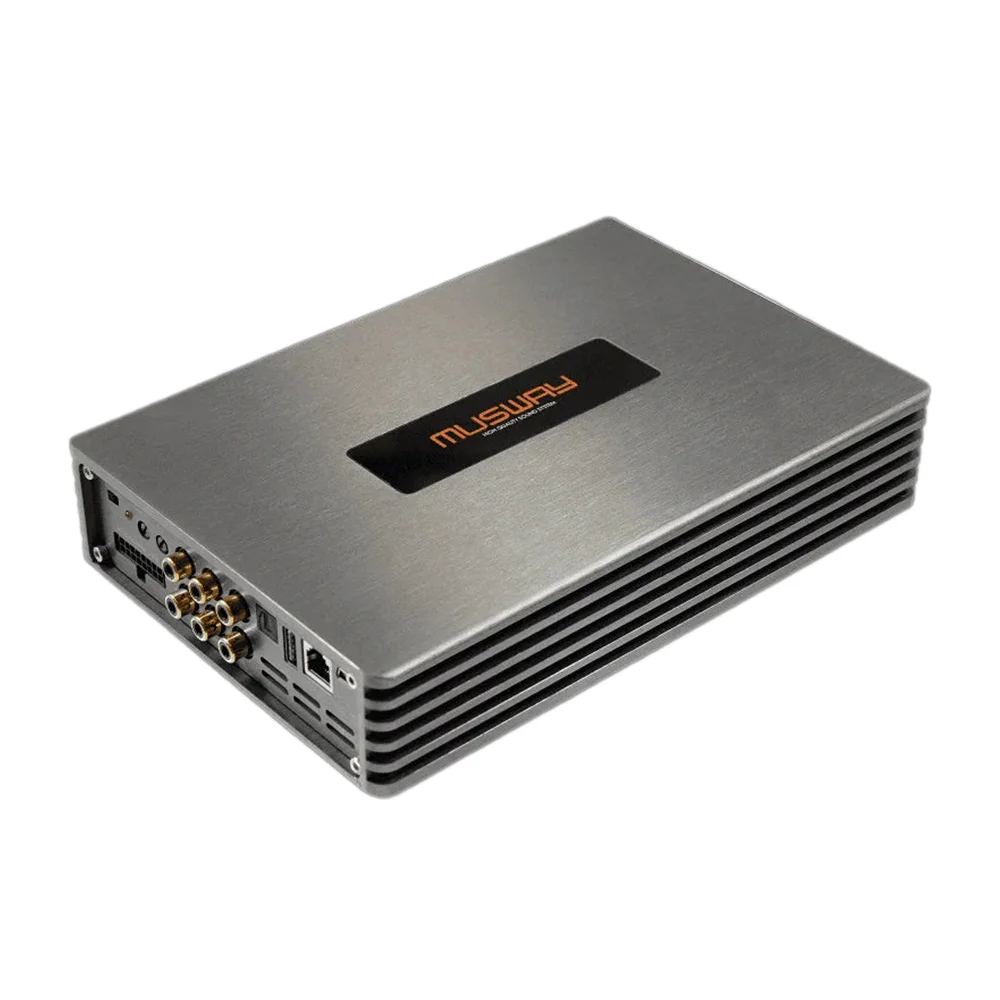

Pro Series 6-Channel Full Range Class-D Amplifier
with 10-Channel Digital Sound Processor – 512k
Power Output:
• 120 Watts x 6 @ 4 ohms
• 200 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91″ (W) × 1.73″ (H) × 8.66″ (L) (150 × 44 × 220 mm)
Inputs: High-Level 6 (4.8–20 V RMS)
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1
• Frequency Response: 10 Hz – 22 kHz (–3 dB)
• S/N Ratio: 100 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: > 130 (1 kHz, 2 V RMS, 4Ω)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)
