Especificaciones Técnicas

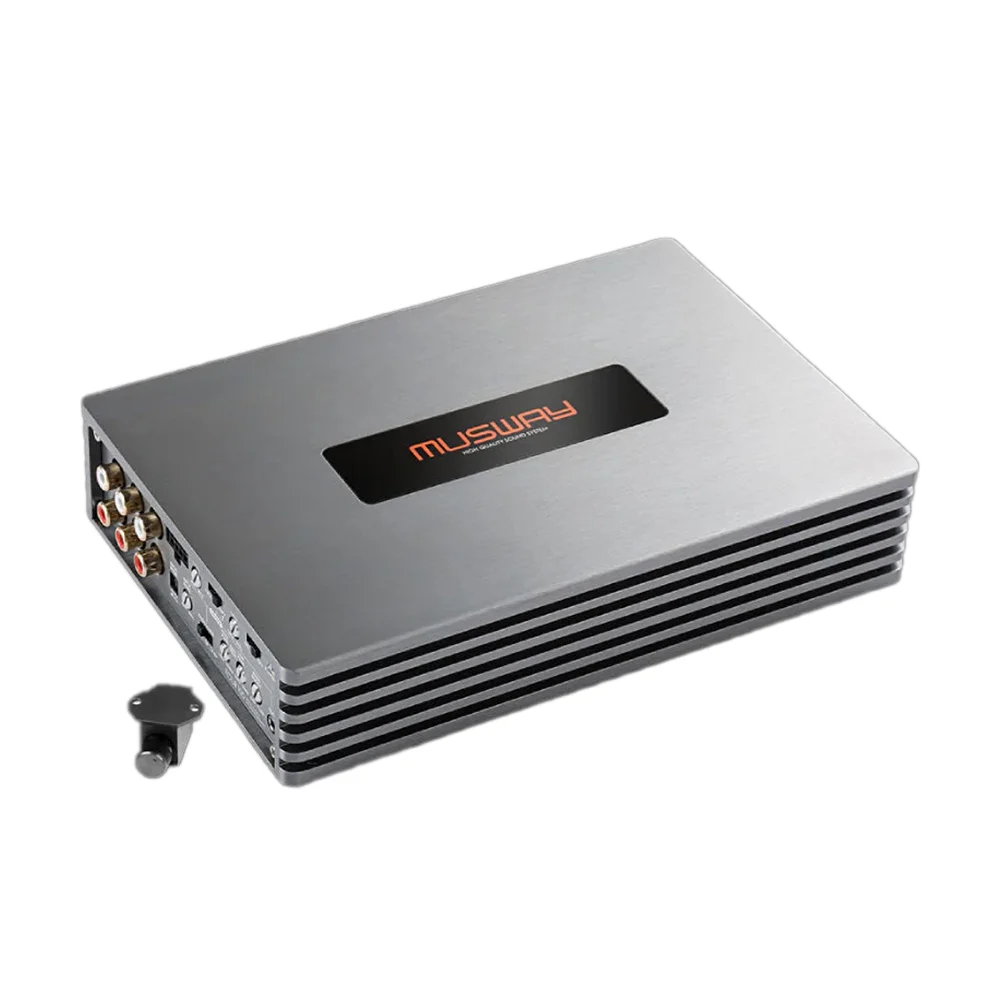

MX Series 4-Channel Full Range Class D Amplifier
Power Output:
• 4 × 120 W @ 4Ω (13.8 V)
• 4 × 200 W @ 2Ω (13.8 V)
• 2 × 400 W @ 4Ω (Bridged, 13.8 V)
• 4 × 131 W @ 4Ω (14.4 V)
• 4 × 218 W @ 2Ω (14.4 V)
• 2 × 435 W @ 4Ω (Bridged, 14.4 V)
Dimensions: 220 × 45 × 150 mm
Inputs: Input Sensitivity 0.2–5 V
High-Level Input with EPS
• Frequency Response: 4 Hz – 39,000 Hz (–3 dB)
• S/N Ratio: >107 dB
• THD: <0.02%
• Damping Factor: 300
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)
