Especificaciones Técnicas

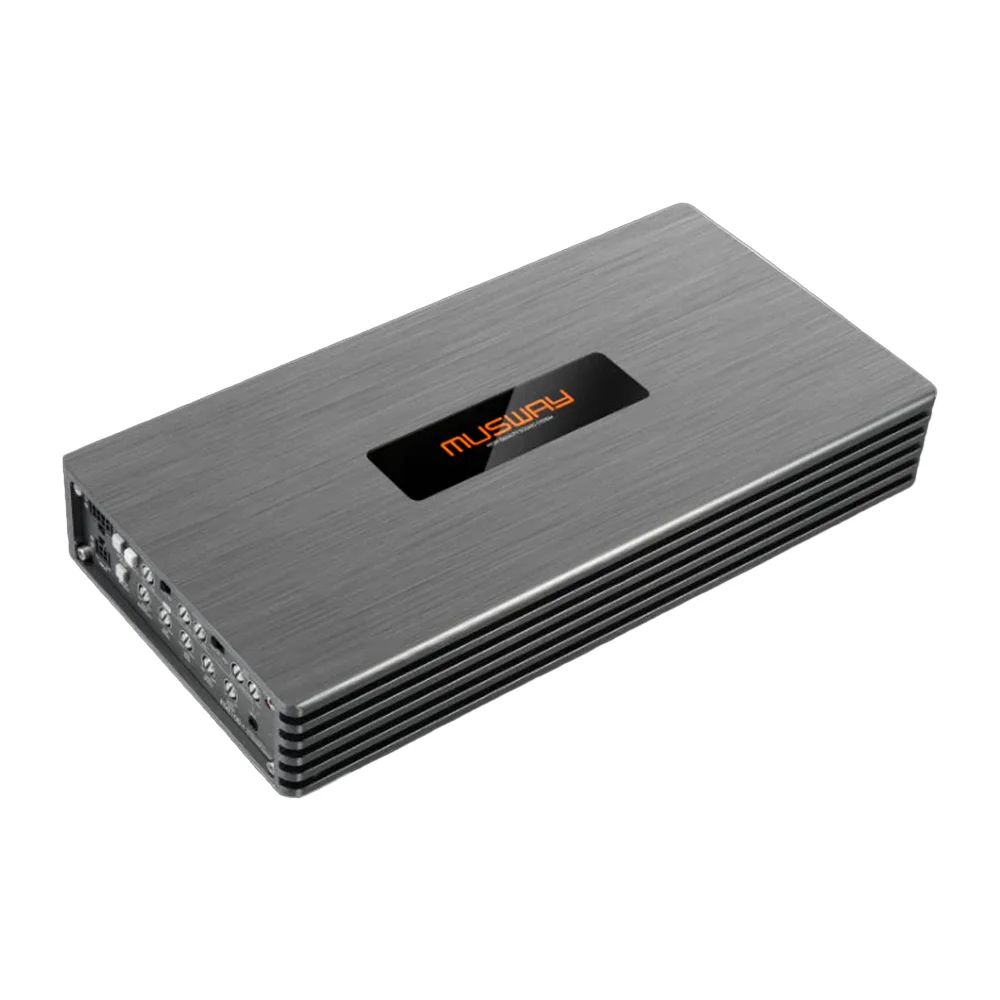

5-Channel Full Range Class D Amplifier
Power Output:
• CH1–4: 4 × 115 W @ 4Ω
• CH1–4: 4 × 200 W @ 2Ω
• CH1–4 Bridged: 2 × 400 W @ 4Ω
• CH5: 1 × 225 W @ 4Ω
• CH5: 1 × 400 W @ 2Ω
• CH5: 1 × 600 W @ 1Ω
Dimensions: 11.6 × 1.77 × 5.9 inches
Inputs: Low-Level RCA 0.3–7.8 V
High-Level 0.7–15.6 V (EPS®)
• Frequency Response: 4 Hz – 39 kHz (–3 dB)
• S/N Ratio: >107 dB (A-weighted)
• THD: <0.02%
• Damping Factor: >300
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged), 1Ω (sub channel)
