Especificaciones Técnicas
Power Rating RMS 100 Watts
Power Rating Max. 200 Watts
Impedance 3 Ohms
Frequency Range 50 – 24000 Hz

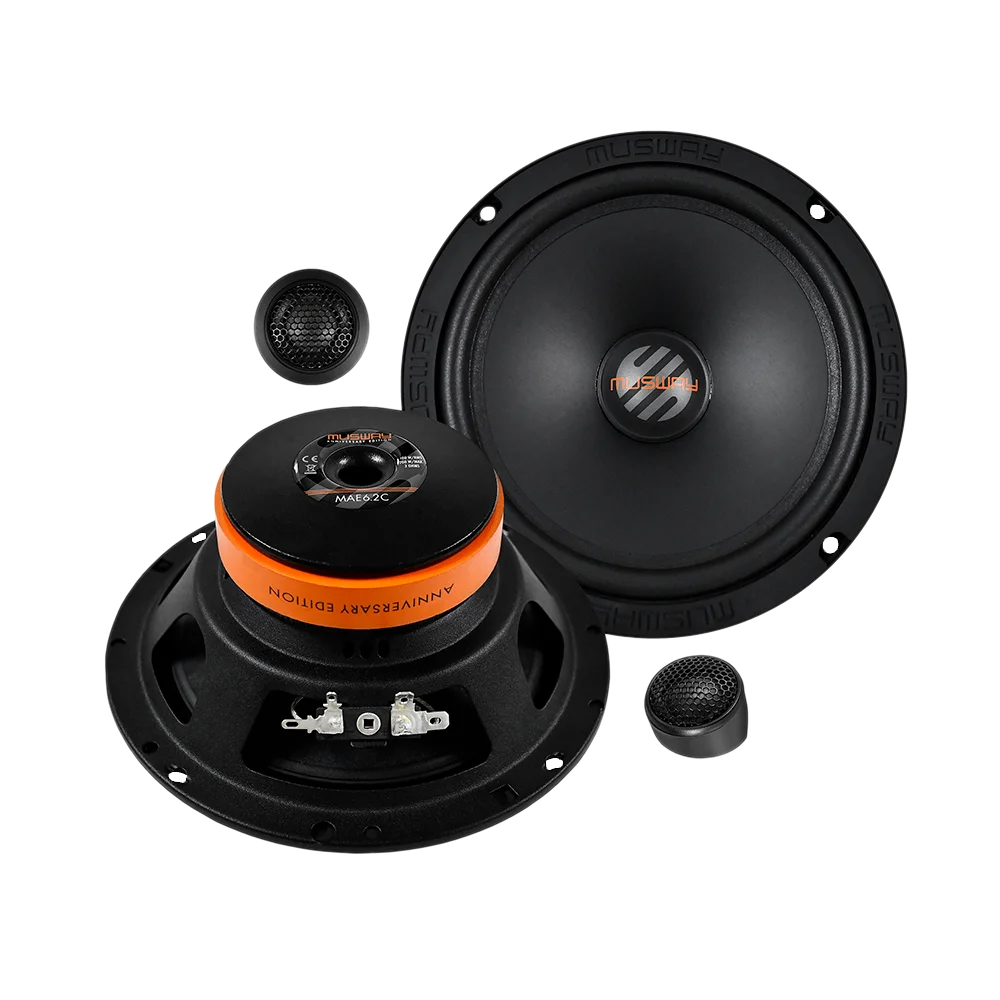

16,5 cm (6.5“) Midbass Speakers
Reinforced Paper Cones
25,5 mm Voice Coils
13,1 oz. / 369 g Neodymium Magnets (Y30)
Installation Diameter Ø 144 mm
Installation Depth 67 mm
20 mm (0.75“) Tweeters
Silk Dome Neodymium Drivers
12dB Cable Crossovers
Optionally with – 3dB attenuation
Dimensions Ø 36 x 19 mm
Angled Housing Ø 36 x 24 mm
Flush Mount Housing Ø 41 x 23 mm
Installation Depth 14 mm
Surface Mount Housing Ø 41 x 23 mm
