Especificaciones Técnicas

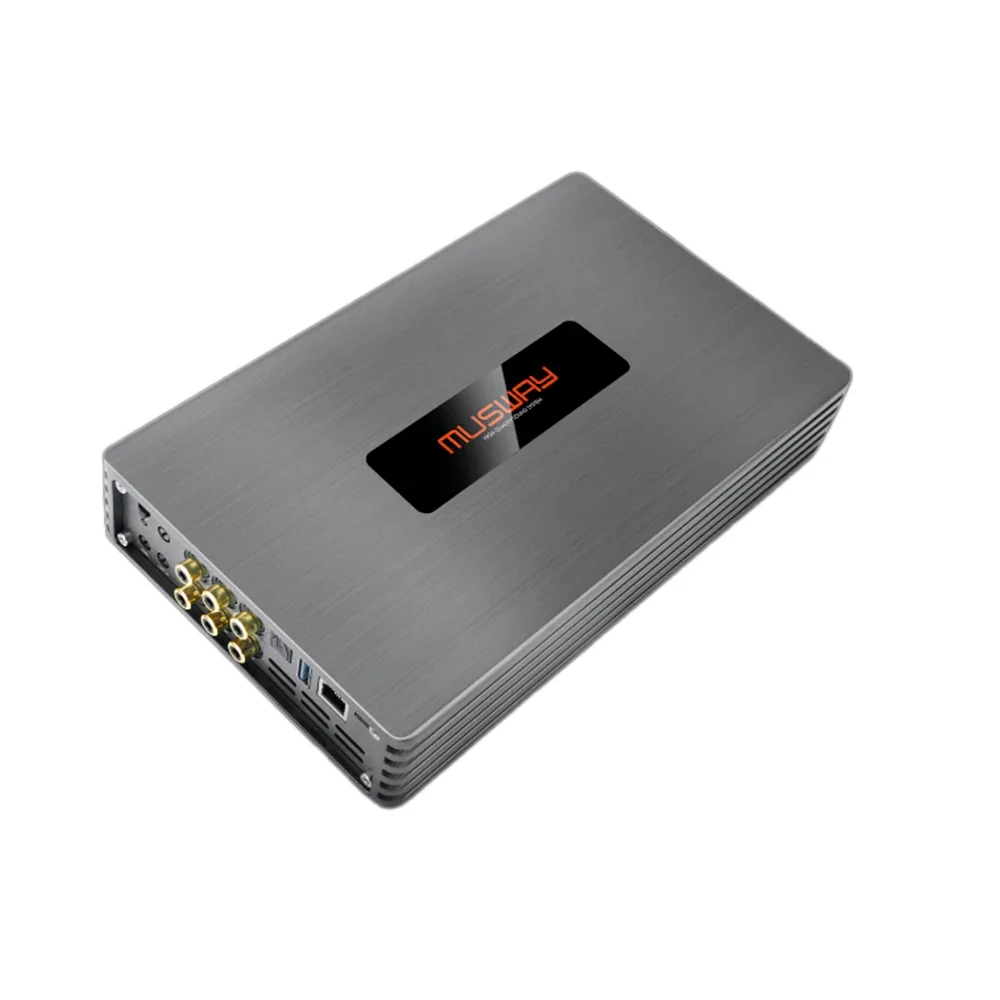

8-Channel Full Range Class-D Amplifier with 12-Channel Digital Sound Processor 512k
Power Output:
• 6 × 80 W + 2 × 135 W @ 4Ω
• 120 watts x 2 @ 4 ohms on CH 7/8
• Bridged: 3 × 270 W + 1 × 440 W @ 4Ω
Dimensions: 11.22″ (W) × 5.16″ (H) × 1.42″ (L) (285 × 131 × 36 mm)
Inputs: High-Level 8
Low-Level 6
AUX 1
Optical PCM 1 (96 kHz / 24-bit)
• Frequency Response: 10 Hz – 20 kHz (–3 dB)
• S/N Ratio: 100 dB (A-weighted)
• THD: 0.02% (1 kHz @ 4Ω, 10 W)
• Damping Factor: >70 (1 kHz, 2 V RMS, 4Ω)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)
