Especificaciones Técnicas

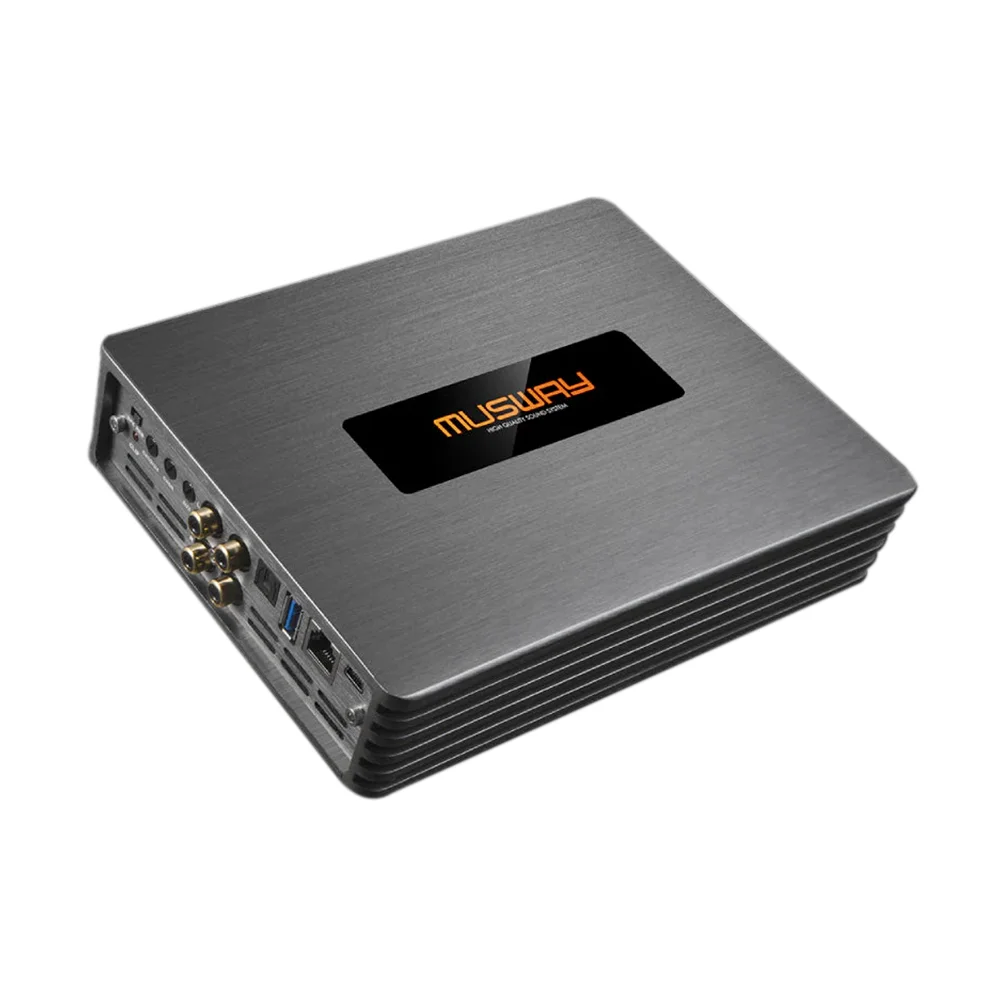

6-Channel Full Range Class-D Amplifier with 8-Channel DSP – 512k
Power Output:
• 80 watts x 6 @ 4 ohms
• 130 watts x 6 @ 2 ohms
• Bridged: 3 × 260 W @ 4Ω
Dimensions: 5.91″ (W) × 1.73″ (H) × 8.66″ (L) (150 × 44 × 220 mm)
Inputs:
High-Level 6 (4.8–20 V RMS
Low-Level RCA 6 (2–6 V RMS)
AUX RCA 1 (2–6 V RMS)
Optical Stereo PCM 1 (96 kHz / 24-bit)
• Frequency Response: 10 Hz – 20 kHz (–3 dB)
• S/N Ratio: 94 dB (A-weighted, Max Power)
• THD: 0.014% (1 kHz @ 4Ω, 5 W)
• Damping Factor: 55 (1 kHz)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)
