Especificaciones Técnicas

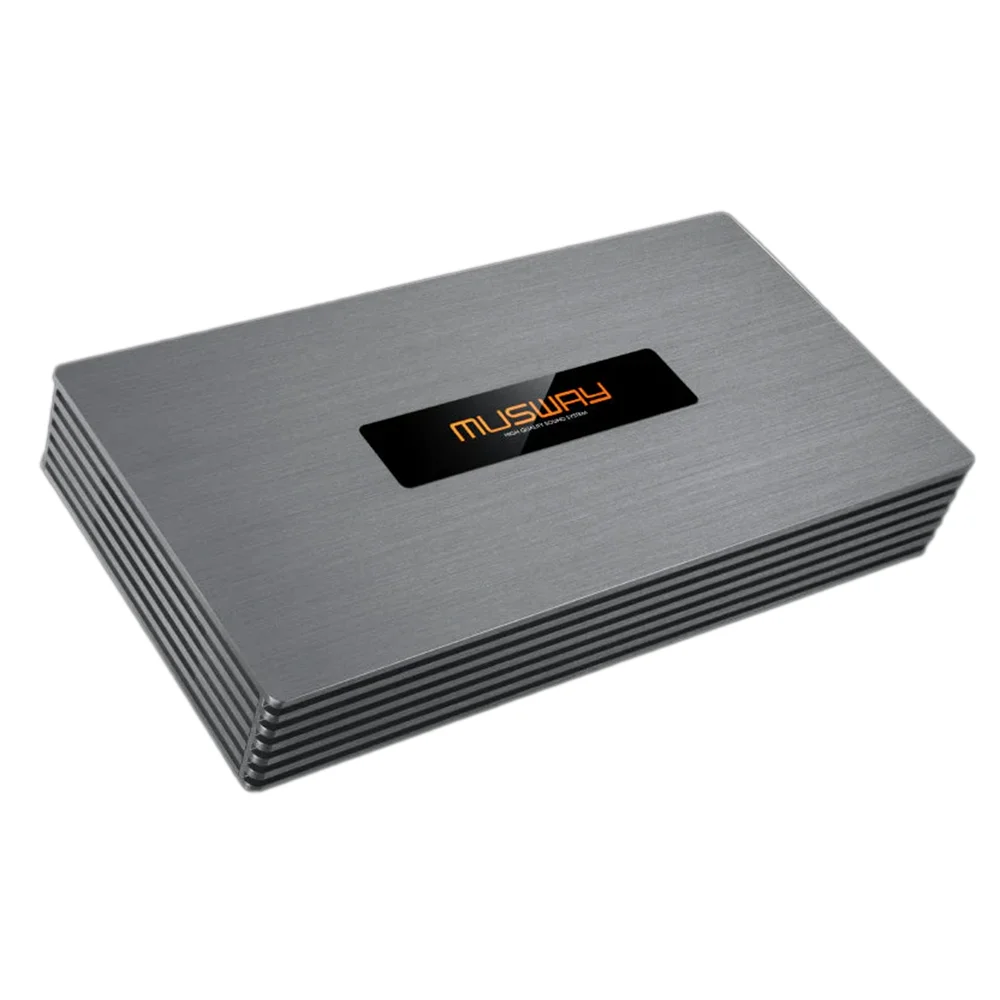

12-Channel Class-D Amplifier with 16-Channel DSP 512k
Power Output:
• 12 × 85 W @ 4Ω
• 12 × 120 W @ 2Ω
• 240 W @ 4Ω (Bridged)
Dimensions: 13.39″ × 6.75″ × 1.89″ (340 × 171.5 × 48 mm)
Inputs: High-Level 8–24 V
Low-Level 2–6 V
AUX 1–8 V
• Frequency Response: 15 Hz – 22 kHz
• S/N Ratio: 95 dB (A-weighted)
• THD: 0.05% (1 kHz @ 4Ω, 90% Power)
• Damping Factor: >70 (1 kHz, 2 V RMS, 4Ω)
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)
