Especificaciones Técnicas

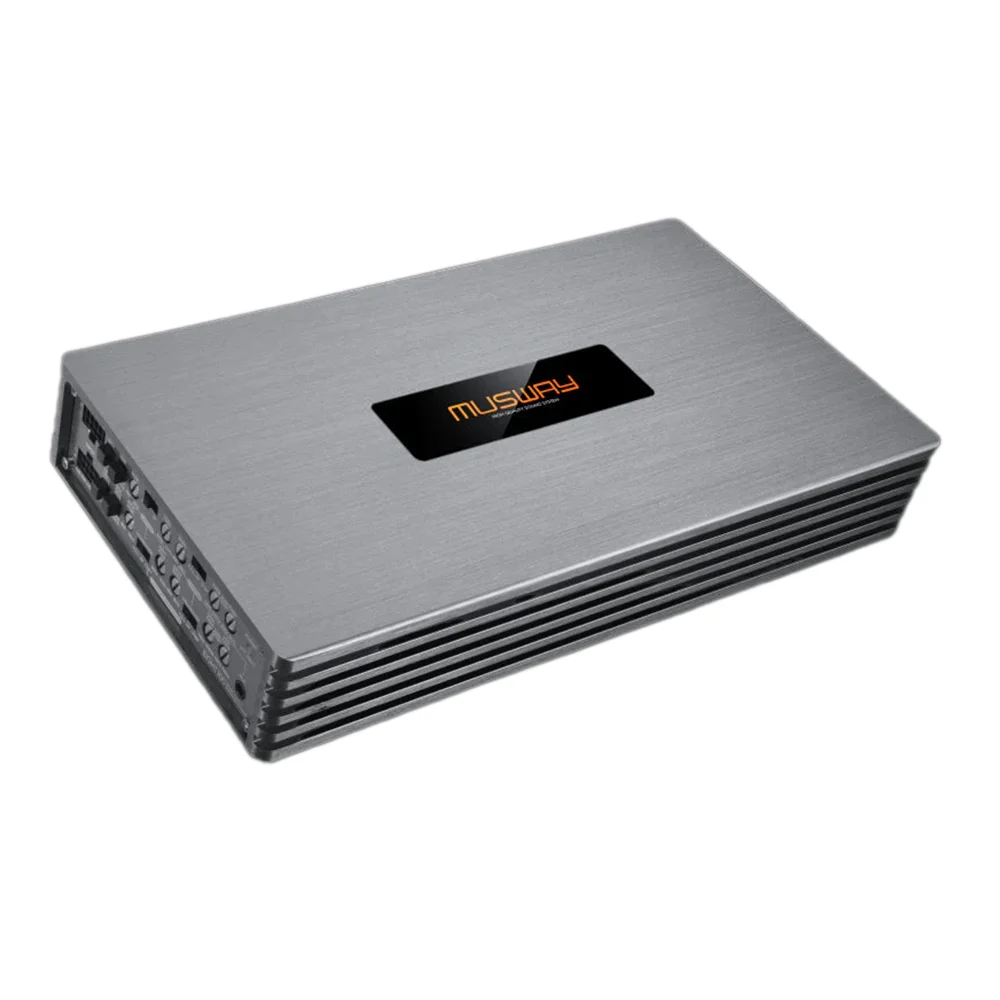

8-Channel Full Range Class D Amplifier
Power Output:
• 8 × 100 W @ 4Ω (13.8 V)
• 8 × 180 W @ 2Ω (13.8 V)
• 4 × 360 W @ 4Ω (Bridged, 13.8 V)
• 8 × 110 W @ 4Ω (14.4 V)
• 8 × 195 W @ 2Ω (14.4 V)
• 4 × 390 W @ 4Ω (Bridged, 14.4 V)
Dimensions: 11.81 × 1.77 × 5.91 in
Inputs: Low-Level RCA 0.2–5 V
High-Level 0.7–15 V (EPS®)
• Frequency Response: 4 Hz – 38,000 Hz (–3 dB)
• S/N Ratio: >107 dB
• THD: <0.02%
• Damping Factor: >150
Minimum Load Impedance: 2Ω (per channel), 4Ω (bridged)
