Especificaciones Técnicas

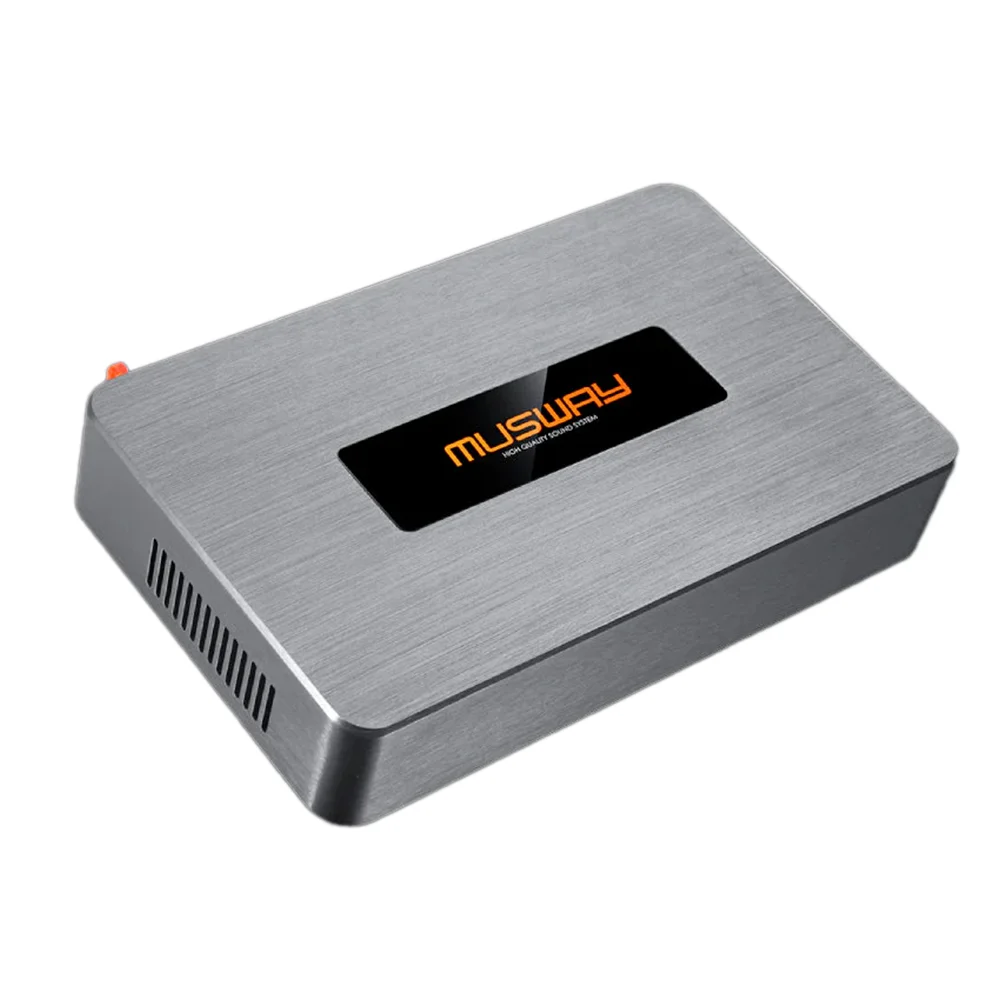

8-Channel Full Range Class-D Amplifier with DSP 512k bit
Power Output:
Output Power @ 13.8 VDC, 1% THD:
• 100 watts x 8 @ 2 ohms
• 70 watts x 8 @ 4 ohms
Output Power bridged @ 13,8 VDC, 1% THD:
• 4 x 200 Watts RMS @ 4 Ω
Dimensions: 3.85″ (W) × 6.49″ (L) × 1.30″ (H)
Inputs: 3.5 – 10 or 18 V/RMS (high-level)
1.5 – 4.5 V/RMS (low-level)
• Distortion – THD, 1 kHz @ 4 Ω, 10 W: 0.01 %
• Bandwidth -3 dB, 2 V/RMS, 4 Ω: 15 Hz – 22 kHz
• S/N ratio @ A weighted, 1 V, Max. Power: 95 dB A
• Damping factor @ 1 kHz, 2 V/RMS, 4 Ω: > 70
Minimum Load Impedance: 3 Ω (high-level)
47 kΩ (low-level)
